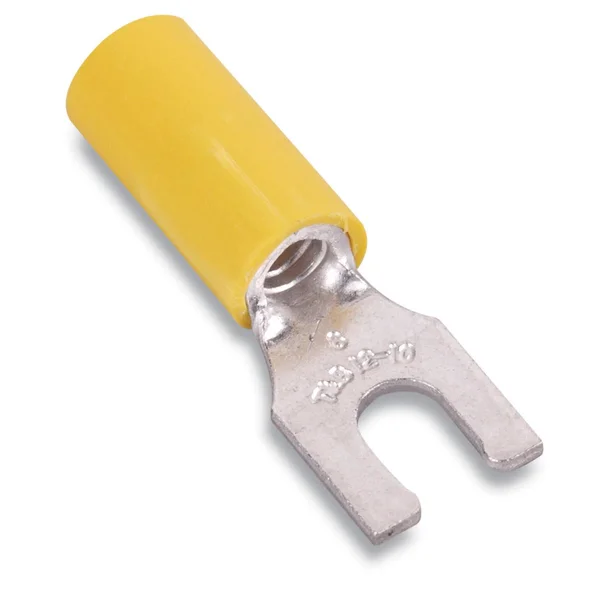

Sta-Kon RC10-8FL

Description

Thomas & Betts Sta-Kon RC Series Vinyl-insulated locking fork terminal in yellow color is made of electrolytic tin plated copper for high conductivity that comes with extra-long PVC insulation sleeve in yellow color for better protection. It has maximum insulation of 0.162 Inch for better safety and is feasible to operate with 600 Volts at 105 deg C. Fork terminal for conductor size ranges from 12 - 10 AWG is ideal for size 8 stud and allows easy installation since the mounting screw does not have to be completely removed. It features brazed seam barrel that is serrated for high pullout value. Locking fork terminal has a specially designed tongue that allows staying on like a ring. It meets UL 94 V-0 flammability rating and has UL/CSA approval. It measures 1 Inch x 0.370 Inch.

Key Features

• It features brazed seam barrel that is serrated for high pullout value.
• It meets UL 94 V-0 flammability rating and has UL/CSA approval.
• Locking fork terminal has a specially designed tongue that allows staying on like a ring.
• It measures 1 Inch x 0.370 Inch.
• Fork terminal for conductor size ranges from 12 - 10 AWG is ideal for size 8 stud and allows easy installation since the mounting screw does not have to be completely removed.
• Thomas & Betts Sta-Kon RC Series Vinyl-insulated locking fork terminal in yellow color is made of electrolytic tin plated copper for high conductivity that comes with extra-long PVC insulation sleeve in yellow color for better protection.
