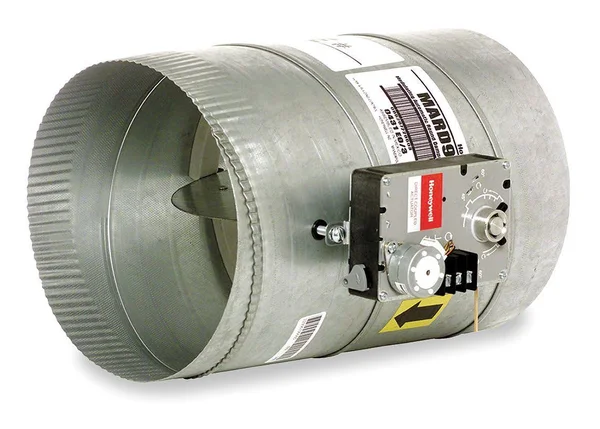

Honeywell MARD8 8x22 Round Automatic Modulating Damper

Description

Power-open, power-closed actuator. Round damper, modulating automatic, dia 8 in, voltage 24 ac, output amps 1.8 Va, connection screw terminals, terminal designation cw, com, ccw terminal designation, rotation angle 90 deg, torque 35 in-lbs, timing sec 90, ambient temp range 20 to 125 f. Screw terminal connection. Control and static pressure dampersroundmodulatingwith 24vac, floating-control motor. For bypass and zone damper control. Power-open, power-closed actuator. Screw terminal connection. Round damper, modulating automatic, dia 8 in, voltage 24 ac, output amps 1.8 Va, connection screw terminals, terminal designation cw, com, ccw terminal designation, rotation angle 90 deg, torque 35 in-lbs, timing sec 90, ambient temp range 20 to 125 f, ambient humidity range percent 5 to 95, application zone damper or bypass damper, requires spc for bypass, for use with forced air zone control panels and static pressure control. Control and static pressure dampersroundmodulatingwith 24vac, floating-control motor. For bypass and zone damper control. Round damper, modulating automatic, dia 8 in, voltage 24 ac, output amps 1.8 Va, connection screw terminals, terminal designation cw, com, ccw terminal designation, rotation angle 90 deg, torque 35 in-lbs, timing sec 90, ambient temp range.

Key Features

• For bypass and zone damper control.
• Control and static pressure dampersroundmodulatingwith 24vac, floating-control motor.
• Round damper, modulating automatic, dia 8 in, voltage 24 ac, output amps 1.8 Va, connection screw terminals, terminal designation cw, com, ccw terminal designation, rotation angle 90 deg, torque 35 in-lbs, timing sec 90, ambient temp range.
• Screw terminal connection.
• Power-open, power-closed actuator.
