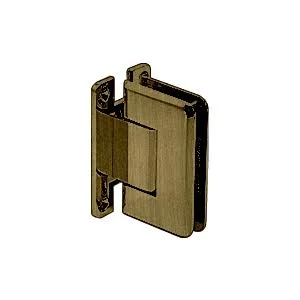

CRL P1n337abr Antique Brass Pinnacle 337 Series Adjustable Wall Mount Full Back Plate HINGE, Gold

Description

The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). Cut-out dimensions for CRL hinges may not match those of other brands. (54 kg) with a maximum door width of 32" (813 mm). (36 kg) with a maximum door width of 28" (711 mm). Call for details. Closing Type: Self-Centering when within 15 degree of closed position. Construction: Solid Brass Hinge Swings: 90 degree in and 90 degree out (at factory set position). NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Custom finishes are available on request. For doors pulling outwards only (using a clear door jamb) you can adjust the hinge to close 5 degree inside the shower area thus having the door close snugly against the jamb. Once the door is hung simply loosen the Allen set screws and turn the door to the desired closed position. Use only the template included with this hinge. Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. By merely tightening the Allen screws your door will self-center to the desired closed position.

Key Features

• P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• (36 kg) with a maximum door width of 28" (711 mm).
• (54 kg) with a maximum door width of 32" (813 mm).
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
