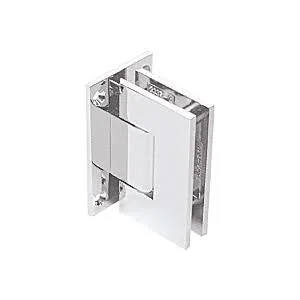

CRL GEN337SC Satin Chrome Geneva 337 Series Adjustable Wall Mount Full Back Plate HINGE, Silver

Description

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Construction: Solid Brass Hinge Swings: 90 degree in and 90 degree out (at factory set position). Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Closing Type: Self-Centering when within 15 degree of closed position. Contact the DK Hardware Sales Shower Door Department. Once the door is hung simply loosen the Allen set screws and turn the door to the desired closed position. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Features: Adjustable to any angle up to 90 degree without having to take door down. Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Custom finishes are available on request. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Features: Adjustable to any angle up to 90 degree without having to take door down. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. Use only the template included with this hinge. (54 kg) with a maximum door width of 32" (813 mm).

Key Features

• (36 kg) with a maximum door width of 28" (711 mm).
• (54 kg) with a maximum door width of 32" (813 mm).
• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Features: Adjustable to any angle up to 90 degree without having to take door down.
