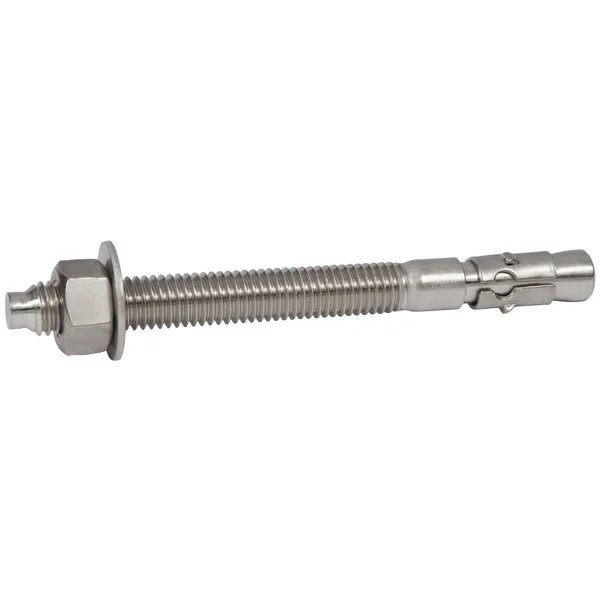

CONFAST 1/4x22 x 1-3/4x22 Stainless Steel Wedge Anchor (100 per Box)

Description

Edge distance it is very important not to install the anchor any closer than 1-1/4in from an unsupported edge of the concrete. Spacing between anchors each anchor must be spaced a minimum distance of 2-1/2in from each other when measured center to center. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 3/8in. Hole diameter/bit diameter the anchor requires a 1/4in hole to be drilled in the base material concrete only. The 1/4in diameter anchor requires the hole in the fixture to be 5/16in. Diameter of anchor the diameter of the anchor is 1/4in. Applications the anchor is made from 304 stainless steel. Hole diameter/bit diameter the anchor requires a 1/4in hole to be drilled in the base material concrete only. Therefore, the anchor must be installed so that a minimum of 1-1/8in of the anchor is embedded into the concrete. The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Environment the anchor is designed for use in a wet environment. Length anchor the length of the anchor is 1-3/4in thread length the length of the threads on the anchor is 5/8in in length. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. This will ensure that the minimum embedment of 1-1/8in will be met. Applications the anchor is made from 304 stainless steel.

Key Features

• Therefore, the anchor must be installed so that a minimum of 1-1/8in of the anchor is embedded into the concrete.
• Diameter of anchor the diameter of the anchor is 1/4in.
• Applications the anchor is made from 304 stainless steel.
• Hole diameter/bit diameter the anchor requires a 1/4in hole to be drilled in the base material concrete only.
• Length anchor the length of the anchor is 1-3/4in thread length the length of the threads on the anchor is 5/8in in length.
• Minimum embedment the minimum anchor embedment into the concrete is 1-1/8in.
