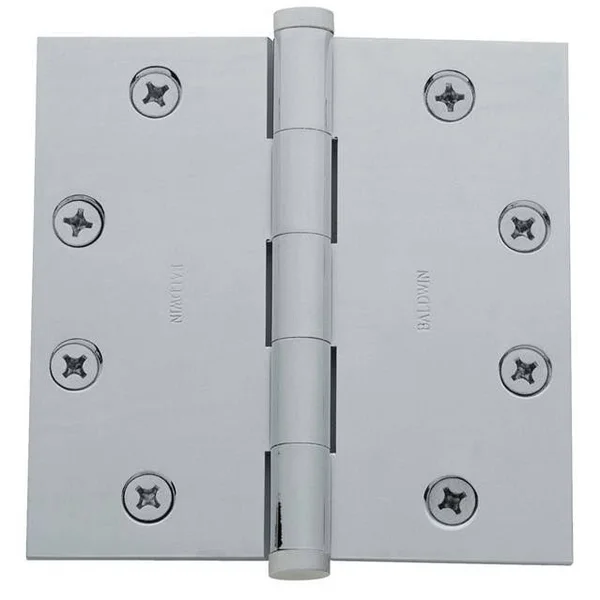

Baldwin Hinge 4.5 x 4.5 Sqr Corner NRP DORB

Description

Baldwin’s extruded hinges are machined from a solid brass bar to exact tolerances to ensure an even wear between each knuckle. Square Corner Hinge, 4.5" x 4.5". The result is a QUALITY hinge which can withstand above average door weights and stresses with maximum vertical and lateral wear performance. Hinges manufactured from solid brass extrusions have two inherent properties: exceptional strength and precision tolerances. Hinges are furnished standard with button design finials. Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof. The screws are fully threaded to the head and have an undercut head for secure installations. A stainless s. Each hinge is beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position, and furnished with stainless steel, rust-proof pins for added durability. Pins can be removed by unthreading each finial and tapping the pin upward from the bottom of the barrel. Supplied in Singles. Hinge finials are specially designed to thread into the top and bottom of the hinge barrel, preventing the pin from rising out of the hinge barrel. Supplied with non-removable pin Extruded brass, full mortise hinges are machined for precise installation and smooth movement. This special application is used when the hinge barrel is exposed to the exterior side of a building (Reverse Bevel Door Conditions). Supplied with fixings.

Key Features

• Baldwin full mortise hinges are classified as STANDARD WEIGHT for installation on doors up to 1.75-Ą (44mm) in thickness.
• Each hinge is beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position, and furnished with stainless steel, rust-proof pins for added durability.
• Use three hinges on doors up to and including 7.5 feet (2.3m) and one additional hinge for each additional 2.5 feet (.76m) or fraction thereof.
• Knuckles are milled to a clearance of 0.010-Ą (.25mm) to minimize vertical wear.
• All full mortise hinges are supplied standard with appropriate size wood.
• Each pin is manufactured from precision ground Type 302, stainless steel material to prevent corrosion.
